TLL-300D
The Triple Line Lifter 300D is a multi-phase conductor support for distribution work up to 34.5kV. When your job demands wider phase spacing or vertical/horizontal orientation flexibility, the TLL-300D provides the muscle. Built to pin into a custom digger derrick or crane adapter, it keeps power lines securely supported during pole changeouts and structural maintenance without disrupting power to consumers.
CLICK FOR RENTAL INFOFeatures
- Digger Derrick & Crane Compatibility: Built with heavy-duty adapters to mount securely to digger derricks or auxiliary cranes, maximizing the utility of your heavy fleet assets.
- Dual Orientation (Horizontal & Vertical): Unlike standard jib-mounted lifters, the TLL-300D is engineered to be configured for both horizontally and vertically oriented phase layouts, offering maximum tactical flexibility on complex right-of-ways.
- Expanded Spacing Profile: Built for broader footprints, offering a wide maximum outside-to-outside phase spacing of 9′ 7″ (2921 mm), and a minimum of 1′ 7″ (483 mm), allowing crews to handle larger phase spans safely.
- Rotational Versatility: Crossarm pins directly to the fiberglass mast and can manually rotate 15° in either direction (both inline with the boom and 90° perpendicular to it) to align perfectly with uneven poles. This rotation is designed for the balanced, horizontal configuration only.
- No Tools, 10-Minute Setup: Engineered for high efficiency in the field. Two linemen can have the assembly fully deployed from the truck to the air in under 10 minutes.
- Crossarm & mast are composed of fiberglass for di-electric properties
- Fiberglass is sealed using LineWise desiccant canister system
- No cross bracing required
- 2 wire holder options:
- Roller Wire Holder
- Swing Gate Wire Holder
- 300 lb (136 kg) downward load
- 100 lb (45 kg) side & gate load
Specifications
| TLL-300B with 8' crossarm (2438 mm) | TLL-300B with 10' crossarm (3048 mm) | |
|---|---|---|
| Voltage (#) Phases up to 34.5 kV (3) phases | Capacity per position 300 lb (136 kg) per position (max) 900 lb (408 kg) total (3 phases) 100 lb (45 kg) horizontal load per position 300 lb (136 kg) total horizontal load | Capacity per position 300 lb (136 kg) per position (max) 900 lb (408 kg) total (3 phases) 100 lb (45 kg) horizontal load per position 300 lb (136 kg) total horizontal load |
| Max. Phase Spacing Outside to Outside Center to Outside | 7’ 7’’ (2311 mm) 3’ 8’’ (1118 mm) | 9’ 7’’ (2921 mm) 4’ 8’’ (1422 mm) |
| Min. Phase Spacing Outside to Outside Center to Outside | 1’ 7’’ (483 mm) 8’’ (203 mm) | 1’ 7’’ (483 mm) 8’’ (203 mm) |
| Total unit weight (Approx): crossarm, mast & 3 wire holder brackets | 8’ (2438 mm) crossarm with 31’’ (787 mm) clear span mast = 137 lb (62 kg) * Plus 60-135 lb (27-61 kg) for adapter | 10’ (3048 mm) crossarm with 31’’ (787 mm) clear span mast = 146 lb (66 kg) * Plus 60-135 lb (27-61 kg) for adapter |
| Phase to Ground | clear span fiberglass varies by dash number | clear span fiberglass varies by dash number |
| Hydraulic | No, manual adjustment only | No, manual adjustment only |
| Mounting | Digger Derrick or Crane | Digger Derrick or Crane |
| Orientation | Horizontal only | Horizontal only |
Wire Holder Options
Roller Wire Holder
Swing Gate Wire Holder

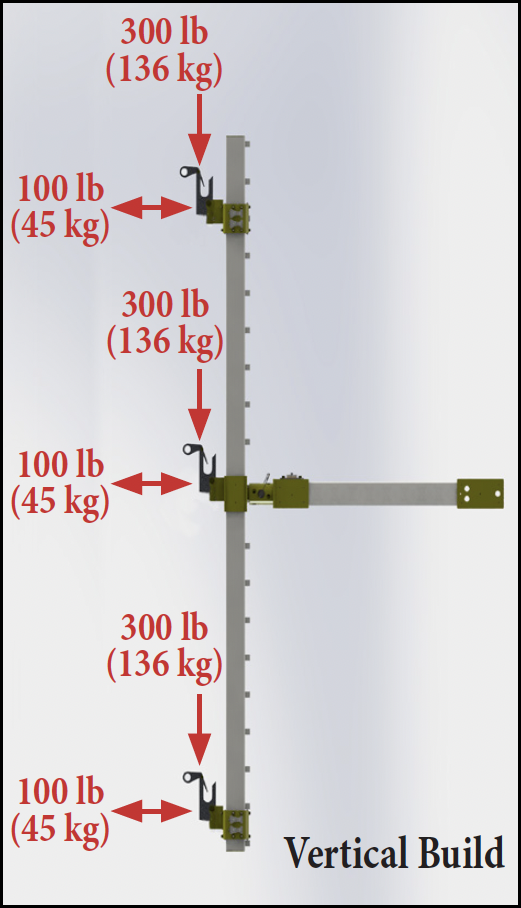

The TLL-300D can accommodate vertical and horizontal construction
rental options available
Rental Options for the TLL-300D are available. For more information contact:
interested in the tll-300B?
