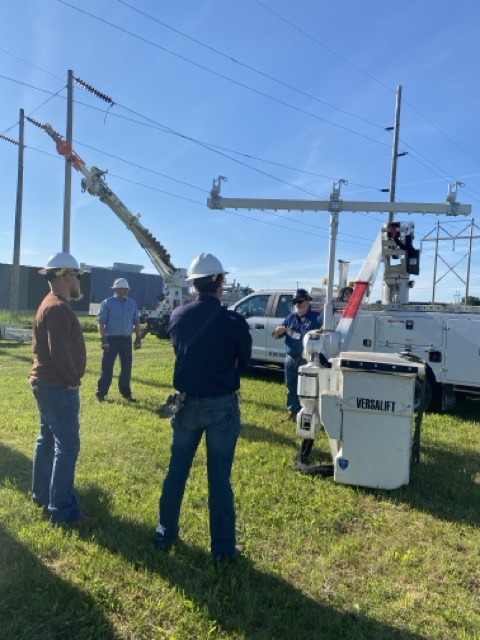

TLL-300B
The Triple Line Lifter 300B is an economical, direct-replacement three-phase lift assembly that mounts directly to your bucket truck’s material handling jib. The TLL-300B is designed specifically for standard distribution work below 34.5kV, allowing a standard 2-lineman crew to lift and support three energized phases simultaneously – without needing heavy cranes or dedicated digger derricks on site.
CLICK FOR RENTAL INFOFeatures
- TLL-300B direct replacement for competitor’s Three Phase Lift Assembly

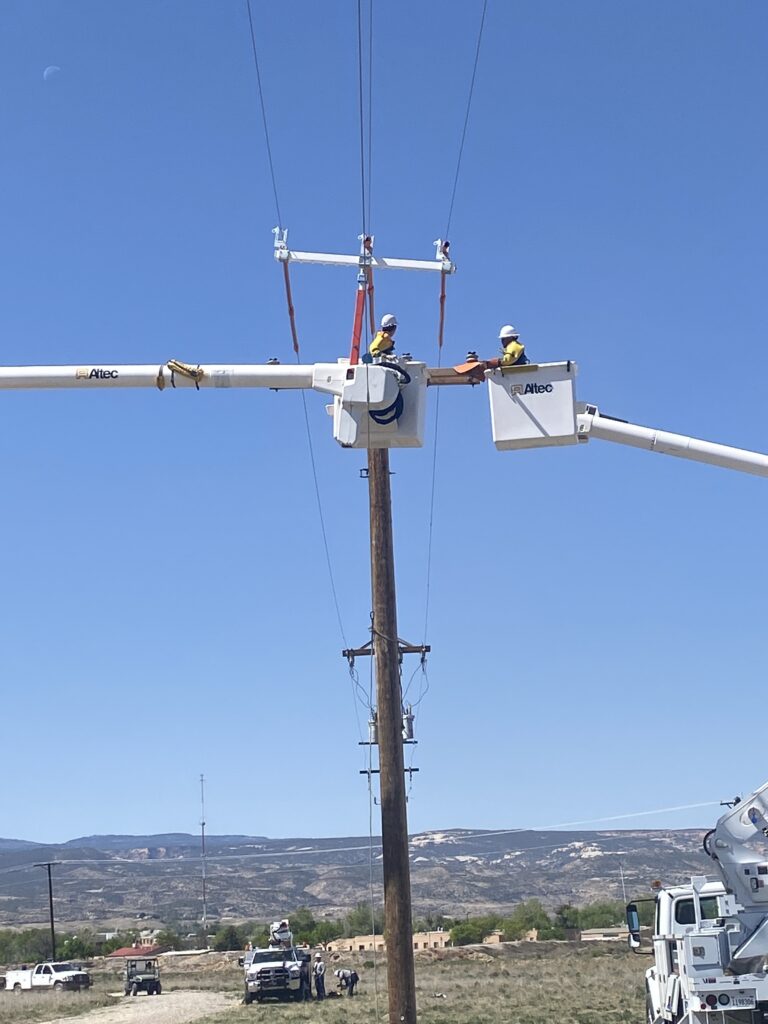

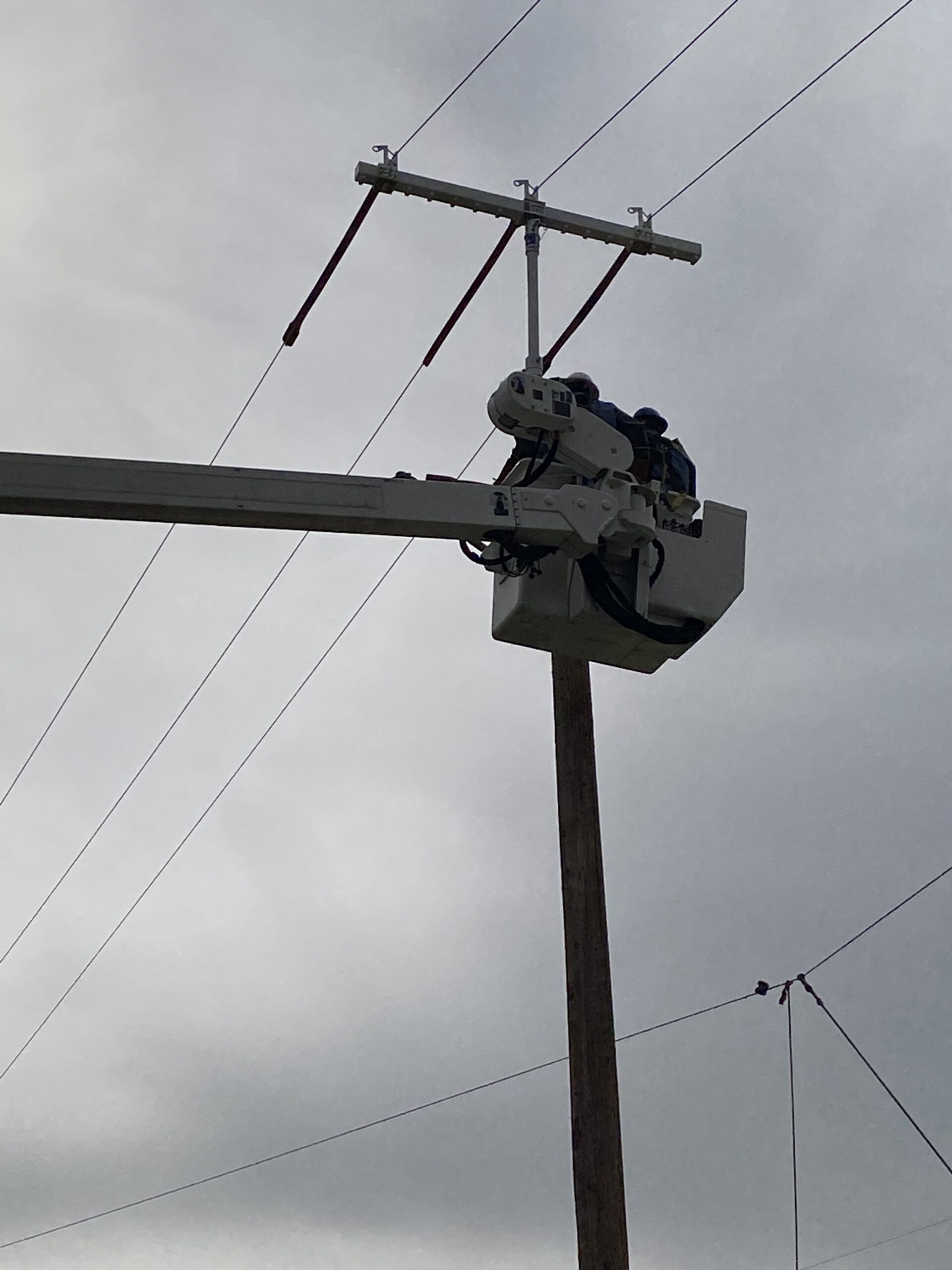

- Bucket Truck Jib Integration: Purpose-built to pin into standard material handling jibs. It transforms your existing bucket truck into a multi-phase distribution workhorse.
- Horizontal Configurations Only: Engineered specifically for horizontal phase construction.
- Flexible Phase Spacing: Quick-adjust wire holders move in 3-inch increments along the crossarm with zero tools required. Accommodates a maximum outside-to-outside phase spacing of 7′ 7″ (2311 mm) and a minimum tight spacing of 1′ 7″ (483 mm).
- Interchangeable Masts: Options include 32.5” (826 mm) or 26.5” (673 mm) fiberglass masts to achieve the required phase-to-ground dielectric clearance, depending on your truck’s configuration.
- Rotational Versatility: Crossarm pins directly to the fiberglass mast and can manually rotate 15° in either direction (both inline with the boom and 90° perpendicular to it) to align perfectly with uneven poles.
- No Tools, 10-Minute Setup: Engineered for high efficiency in the field. Two linemen can have the assembly fully deployed from the truck to the air in under 10 minutes.
- Crossarm & mast are composed of fiberglass for di-electric properties
- Fiberglass is sealed using LineWise desiccant canister system
- No cross bracing required
- 2 wire holder options:
- Roller Wire Holder
- Swing Gate Wire Holder

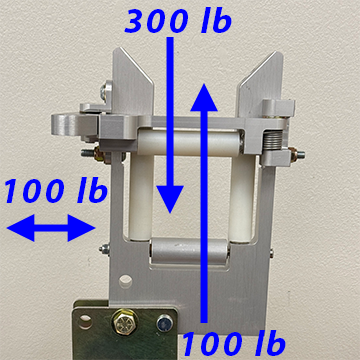

- 300 lb (136 kg) downward load
- 100 lb (45 kg) side & gate load
Specifications
| TLL-300B with 8' crossarm (2438 mm) | TLL-300B with 10' crossarm (3048 mm) | |
|---|---|---|
| Voltage (#) Phases up to 34.5 kV (3) phases | Capacity per position 300 lb (136 kg) per position (max) 900 lb (408 kg) total (3 phases) 100 lb (45 kg) horizontal load per position 300 lb (136 kg) total horizontal load | Capacity per position 240 lb (109 kg) per position (max) 720 lb (327 kg) total (3 phases) 100 lb (45 kg) horizontal load per position 300 lb (136 kg) total horizontal load |
| Max. Phase Spacing Outside to Outside Center to Outside | 7’ 7’’ (2311 mm) 3’ 8’’ (1118 mm) | 9’ 7’’ (2921 mm) 4’ 8’’ (1422 mm) |
| Min. Phase Spacing Outside to Outside Center to Outside | 1’ 7’’ (483 mm) 8’’ (203 mm) | 1’ 7’’ (483 mm) 8’’ (203 mm) |
| Total unit weight (Approx): crossarm, mast & 3 wire holder brackets | 8’ (2438 mm) crossarm with 32.5’’ (826 mm) clear span mast = 118 lb (54 kg) 8’ (2438 mm) crossarm with 26.5’’ (673 mm) clear span mast = 116 lb (53 kg) | 10’ (3048 mm) crossarm with 32.5’’ (826 mm) clear span mast = 127 lb (58 kg) 10’ (3048 mm) crossarm with 26.5’’ (673 mm) clear span mast = 125 lb (57 kg) |
| Phase to Ground | clear span fiberglass varies by dash number | clear span fiberglass varies by dash number |
| Hydraulic | No, manual adjustment only | No, manual adjustment only |
| Mounting | Bucket Truck Material Handling Jib | Bucket Truck Material Handling Jib |
| Orientation | Horizontal only | Horizontal only |
Wire Holder Options

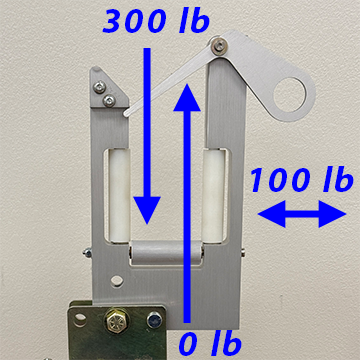

Roller Wire Holder
Swing Gate Wire Holder
The TLL-300B is used for horizontal construction only
