Hot Line Base Plate

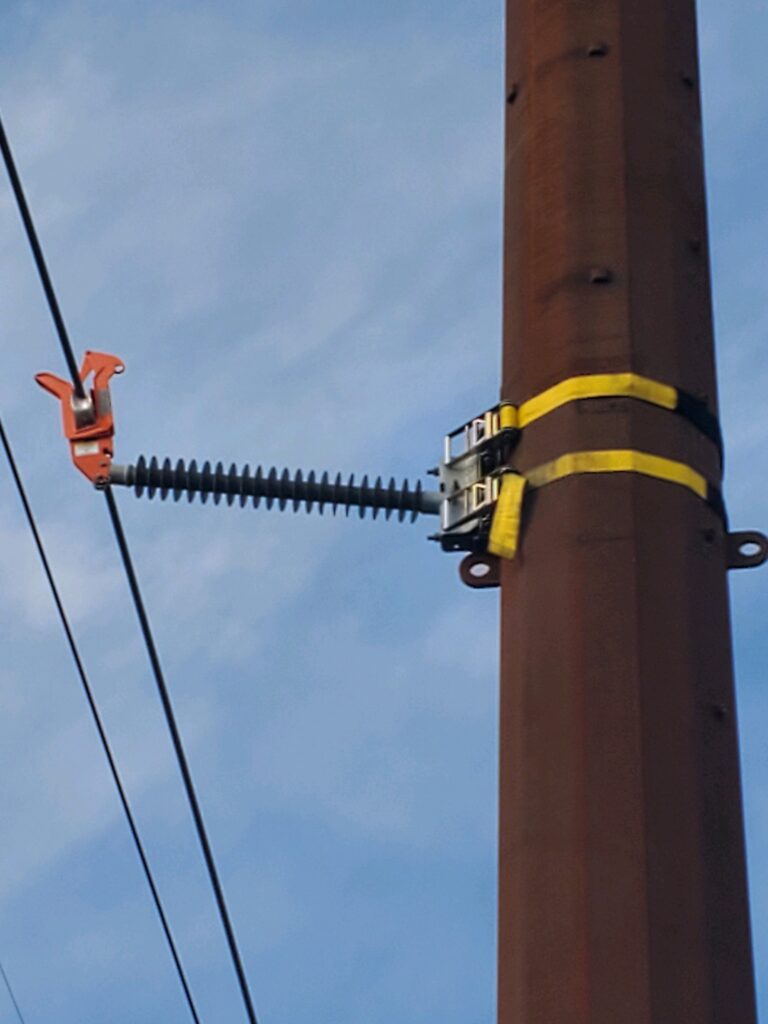

The Hot Line Base Plate is an innovative solution to temporarily hold a conductor in place during planned construction or emergency repairs. The Hot Line Base Plate straps to the pole using heavy duty ratchet straps to hold it in place.
The Hot Line Base Plate consists of an aluminum weldment with 2 straps and 2 mounting bolts for mounting insulators. An optional upper bracket can be purchased to increase capacity.
U.S. Patent No. 8,299,357 & 7,750,236
CLICK FOR RENTAL INFOSpecifications
- Lower attachment (Part Number 67508) = 1600 lb capacity
- Upper attachment (Part Number 67507) = 4000 lb capacity (used with upper attachment for increased capacity)
- Full Kit (Part Number 79240) = includes upper attachment, lower attachment and wire holder
- Safety
- Reliability Improvements
- Process Improvement
- Risk Mitigation
- Overall Cost Reduction on Repairs
- Simplification
- Installs by using 2 Heavy Duty Straps
The Problem
Many live transmission line tools do not have the load rating needed to handle transmission conductors.
Our Solution
The Hot Line Base Plate allows transmission crews to install a non-ceramic insulator on a tubular steel, concrete or wood pole without the need of boring holes or unique banding when holding a conductor in place during planned construction or emergency repairs.
