Tower Platform
The Tower Platform, also known in the utility industry as a “Baker Board”, is a work platform that hooks onto a transmission tower on one end and onto a de-energized transmission conductor at the other end. Used for assisting the installation of 220kV 20′ insulator strings or 500kV 40′ insulator strings.
CLICK FOR RENTAL INFOFeatures & Specifications
- 40′ (12192 mm) platform
- 24” (610 mm) wide fiberglass decking
- 800lb (363 kg) overall weight
- Can be flown by crane or helicopter
- 2 adjustable height hooks with a rated safety chain for attaching to the tower
- 1 roller guide hook with a rated safety chain to attach to the conductor

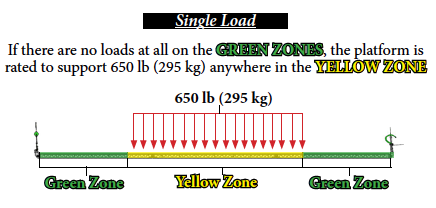

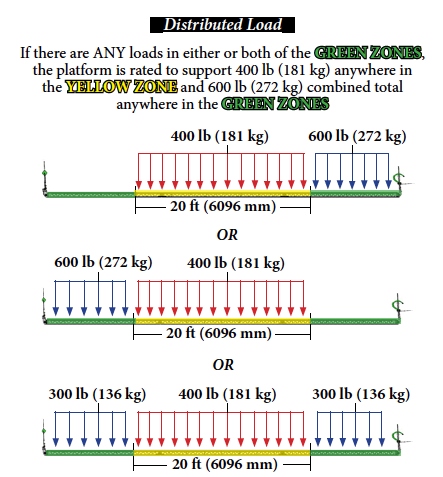

loading specifications
