Hydraulic Line Lifter

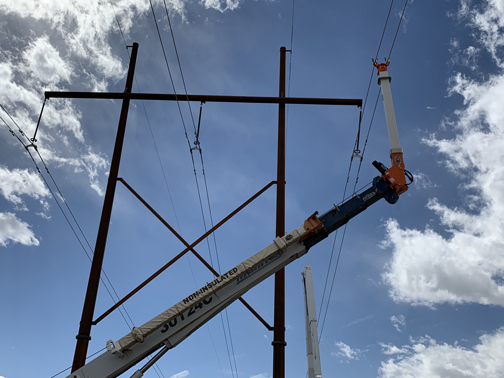

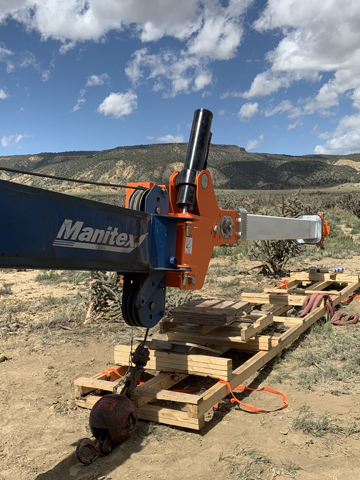

The Hydraulic Line Lifter (HLL-10-4000 and HLL-10-8000) is a hydraulic articulated line lifter that can assist in energized/static work.
CLICK FOR RENTAL INFOFeatures
- Self-contained hydraulic power unit (HPU)
- Hydraulic articulation
- Corona ring
- Test band and test band shield
- Operated by radio remote control
- Works within the load and stability capabilities of the crane
- Completely sealed using the LineWise desiccant canister system
- High strength steel and fiberglass fabrication
- Vinyl cover to protect insulated section included
- Operation, maintenance and parts manual included
- Transportation skid
Specifications
| HLL-10-4000 | HLL-10-8000 | |
|---|---|---|
| Total Unit Weight with skid without skid | 2390 lb (1084 kg) 1380 lb (626 kg) | 2765 lb (1254 kg) 1585 lb (719 kg) |
| Max Conductor kV rating | 345 kV | 345 kV |
| Capacity | up to 4000 lb (1814 kg) | up to 8000 lb (3629 kg) |
| Horizontal Load Capacity Single Conductor Attachment Double Conductor Attachment Tri-bundle Conductor Attachment | Capacity per phase 600 lb (272 kg) 300 lb (136 kg) NA | Capacity per phase 1200 lb (544 kg) 600 lb (272 kg) 400 lb (181 kg) |
| Conductor Spacing Dual Wire Holder Attachment Tri-bundle Attachment | 18'' (457 mm) NA | NA 18, 20, 25.5 (in) 457, 508, 648 (mm) |
| Overall Length | 216.4’’ (5498 mm) | 223.1’’ (5667 mm) |
| Clear Span Fiberglass | 10' (3048 mm) | 10' (3048 mm) |
| Articulation | 120 degrees | 120 degrees |
| Hydraulic | Yes | Yes |
| Mounting | Boom Truck/Crane | Boom Truck/Crane |
| Part Number | 72328 | 74990 |
