TLL-500A

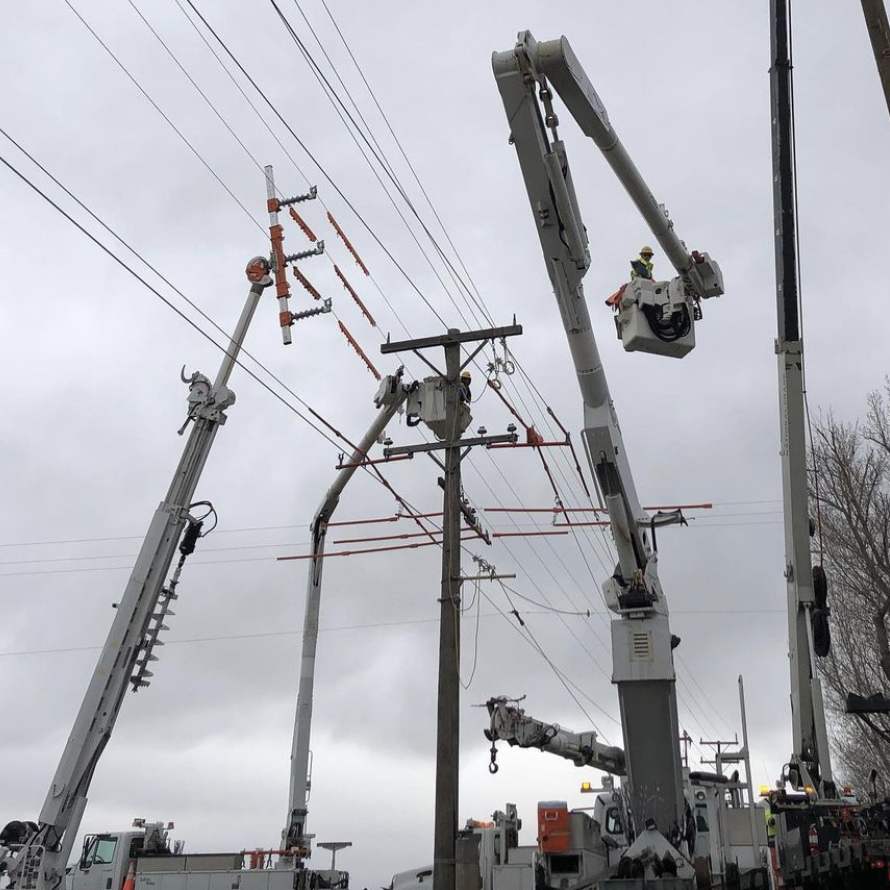

The TLL-500A is an energized conductor supporting tool that helps to create work clearances for Sub-Transmission work.
The Triple Line Lifter-500A fills the gap in our line of energized conductor manipulator lifters between the TLL-500 (which is used for distribution voltages) and the TLL-1300 (which is designed for transmission voltages from 115kV to 130kV). This gap is known in the utility industry as sub-transmission. Hence, the TLL-500A is designed for voltage ratings from 34.5kV to 72.5kV.
CLICK FOR RENTAL INFOspecifications
| TLL-500A-Series 1 | TLL-500A-Series 3 | |
|---|---|---|
| Voltage (#) Phases 34.5 kV (3) phases 72.5 kV (3) phases | Capacity per phase 500 lb (227 kg)/1500 lb (680 kg) total 500 lb (227 kg)/1500 lb (680 kg) total | Capacity per phase 500 lb (227 kg)/1500 lb (680 kg) total 500 lb (227 kg)/1500 lb (680 kg) total |
| Total unit weight (Approx.) TLL-500A with skid TLL-500A w/o skid | 1650 lb (748 kg) 700 lb (317 kg) | 2075 lb (941 kg) 1155 lb (524 kg) |
| Max. Phase Spacing Outside to Outside Center to Outside | 16' (4877 mm) 8' (2438 mm) | 16' (4877 mm) 8' (2438 mm) |
| Min. Phase Spacing Outside to Outside Center to Outside | 5' (1524 mm) 2' 6'' (762 mm) | 7' 10'' (2388 mm) 3' 11'' (1194 mm) |
| Horizontal Configuration Max Load per Phase | 500 lb (227 kg) 300 lb (136 kg) on Altec Digger | 500 lb (227 kg) 300 lb (136 kg) on Altec Digger |
| Vertical Configuration Max Load per Phase | 500 lb (227 kg) 300 lb (136 kg) on Altec Digger | 500 lb (227 kg) 300 lb (136 kg) on Altec Digger |
| Insulator | Polymer | Polymer |
| Hydraulic | No | No |
| Mounting | Crane/Digger Derrick | Crane/Digger Derrick |
TLL 500A

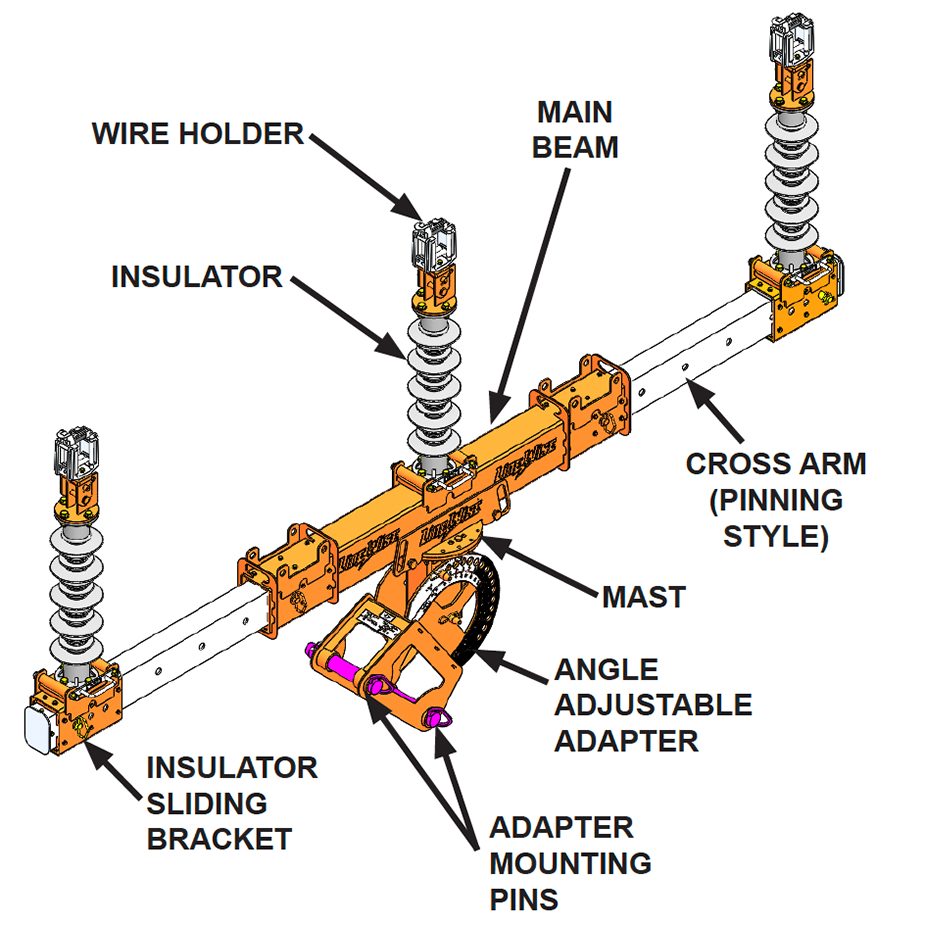

The TLL-500A replaces the need for temporary structures and tag lines while giving positive control of distribution live lines. It consists of 4 major components: mast, crossarm, insulators and extension arms and breaks down into manageable sized components that can quickly and easily be installed in the field by 2 people. The TLL-500A is offered in Series 1 and 3. To clarify the differences, see the options below.
TLL-500A Series 1
- Voltage ratings: 34.5kV – 72.5kV
- Mounts to crane or digger derrick
- Mast turntable allows for 15° swivel left or right when the TLL-500A is in-line with the crane boom or perpendicular
- Converts from horizontal to vertical configuration
TLL-500A Series 3
- Same components as TLL-500A Series 1, except the pinning of the slider every 3” (76 mm) has been replaced with a cylinder for hydraulic extension and retraction
- Allows 30” of insulator travel
TLL-500A Skids
- Stores all the components of the TLL-500A
- Components are pinned to the structure of the skid
- Components are placed in order of assembly to make building/tearing down the unit easier
rental options available
Rental Options for the TLL-500A-S3 are available. For more information contact:
