TLL-4000

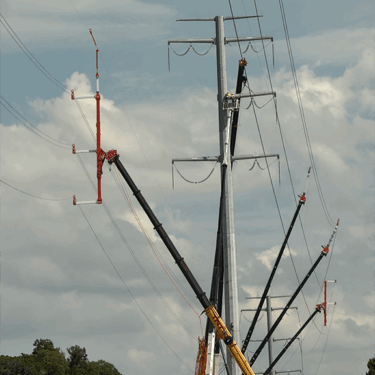

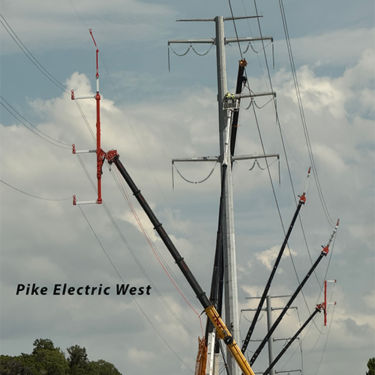

The Triple Line Lifter 4000 is an insulated crane attachment used to support up to 3 energized lines up to 345kV. The TLL-4000 has a maximum capacity of 4000 pounds per phase with a total capacity of 12,000 pounds.
CLICK FOR RENTAL INFOFeatures
- Vertical and horizontal construction
- Hydraulic articulation, extension and retraction
- Handheld radio remote control
- Custom load charts for your crane model(s)
- Manual override control valve
- Holding valves for all cylinders
- Quick attach insulators and wire holders
- Installed at ground level
- Insulators are lab tested (retest every 2 years)
- High strength steel and fiberglass fabrication
- Operation, maintenance and parts manual
Specifications
| Voltage (#) Phases 345 kV (3) phases | Capacity per phase 4000 lb (1814 kg)/12000 lb (5443 kg) total |
| Total unit weight (Approx.) TLL-4000 TLL-4000 w/(1) static arm TLL-4000 w/(2) static arms | 10350 lb (4695 kg) 11000 lb (4990 kg) 11700 lb (5307 kg) |
| Max. Phase Spacing Outside to Outside Center to Outside | 62' (11898 mm) 31' (9449 mm) |
| Min. Phase Spacing Outside to Outside Center to Outside | 32' (9754 mm) 16' (4877 mm) |
| Horizontal Configuration Max Load per Phase | 4000 lb (1814 kg) vertical load 1000 lb (454 kg) side load |
| Vertical Configuration Max Load per Phase | 4000 lb (1814 kg) vertical load 1000 lb (454 kg) side load |
| Maximum Load per Static Arm Wire Holder | 500 lb (227 kg) vertical load 200 lb (91 kg) side load |
| Insulator | Fiberglass |
| Hydraulic | Yes |
| Mounting | Minimum 200 Ton Crane |
