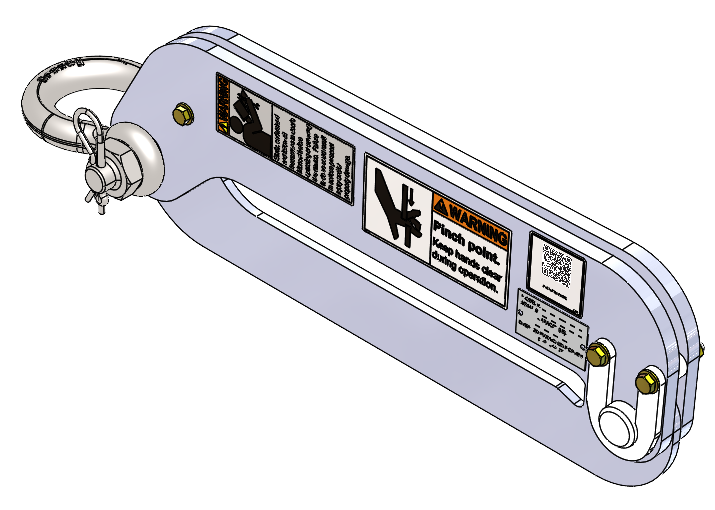

SAG Plate
Our unique patent pending SAG plate is a rigging apparatus used to sag and terminate conductors off the dead-end yoke plate. This allows the user to eliminate all excess rigging from the yoke plate back to the pole/tower and reduce men and equipment hours, ultimately increasing productivity and profitability.
CLICK FOR RENTAL INFOFeatures
- One SAG plate is used per conductor to create a solid connection with the yoke plate so the conductor can be tensioned for installation to the yoke plate
- Utilized with multiple bundle configurations including double, triple, and quad bundles
- Can also be used in conjunction with LineWise Insulator Spreader to create an even more efficient work set up.
- Locks together with shackle (included) or other shackle
specifications
| Horizontal Double Bundle SAG Plate | Horizontal or Vertical Double Bundle SAG Plate | |
|---|---|---|
 |  |
|
| Capacity | 25,000 lb (11,340 kg) | 25,000 lb (11,340 kg) |
| Weight | 30.4 lb (13.8 kg) | 35.24 lb (16 kg) |
| Dimensions | 25.84 long x 21.26 wide x 6.63 tall (656 mm x 540 mm x 168 mm) tall | 25.84 long x 21.26 wide x 6.63 tall (656 mm x 540 mm x 168 mm) tall |
| Configurations | 2 SAG Plates, not connected to each other | - 2 SAG Plates connected by threaded rods and nuts. - Helpful to maintain spacing between SAG Plates when working on vertical double bundles |
configurations

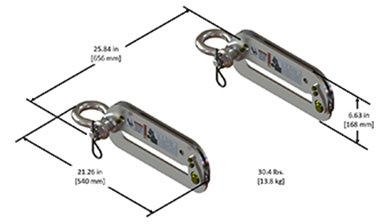

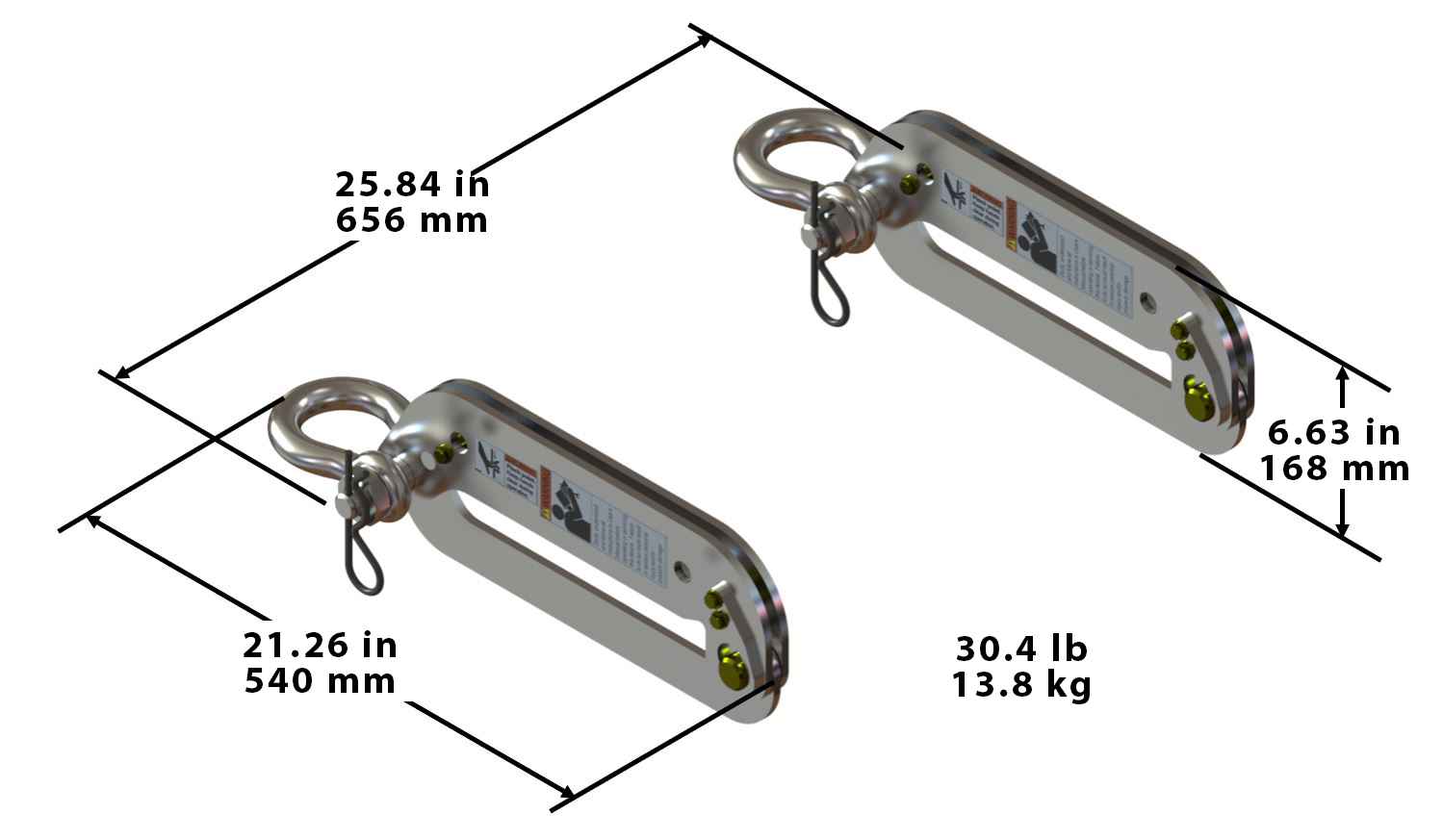

Horizontal Double Bundle SAG Plate

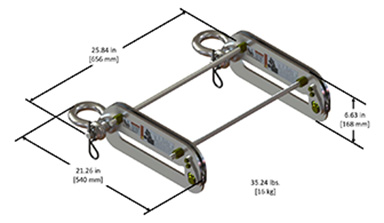

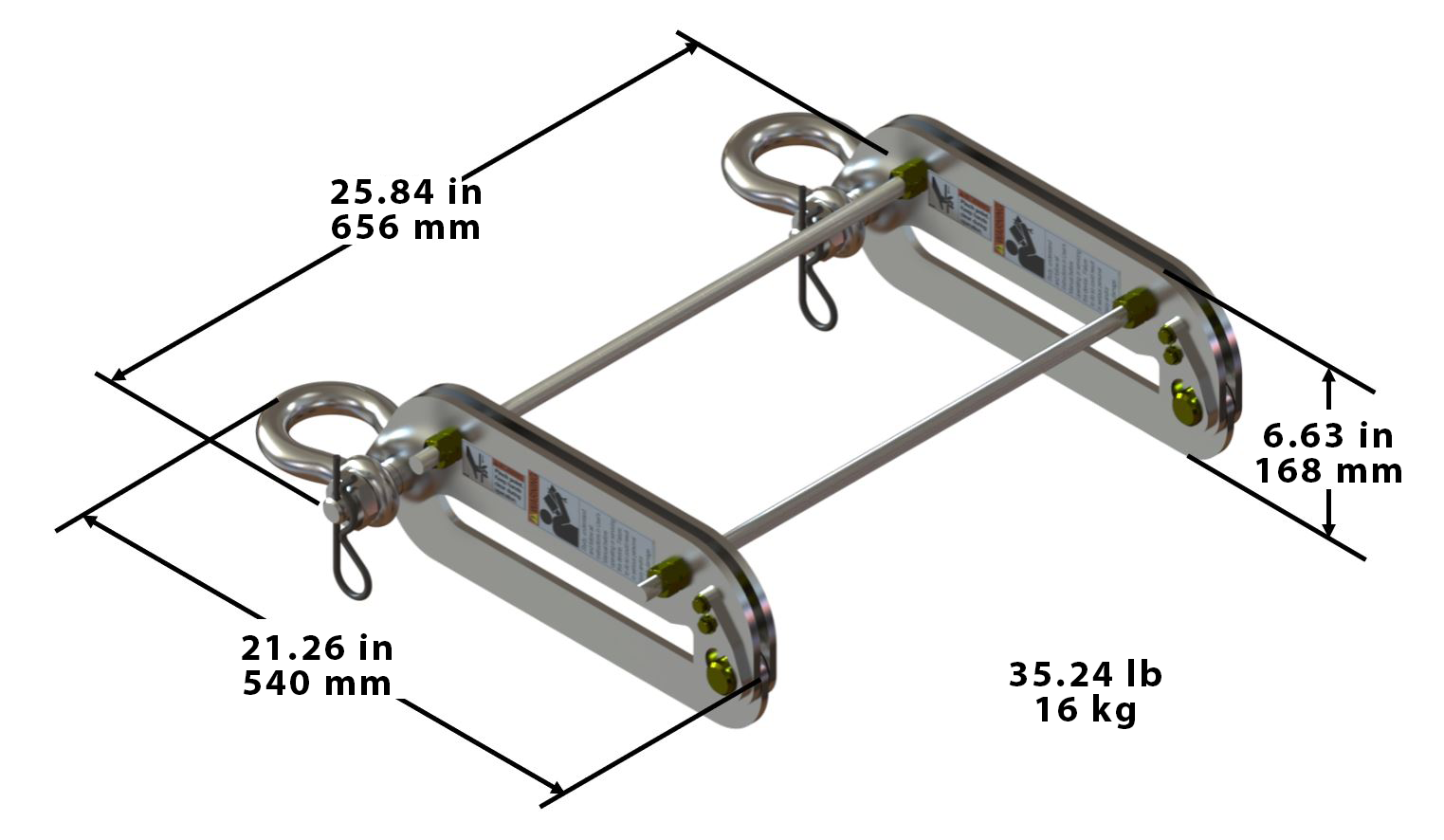

Horizontal or Vertical Double Bundle SAG Plate
