Anchor Tester
The LineWise utility anchor tester plays a vital role in ensuring the safety, reliability, and cost-effectiveness of utility infrastructure.
CLICK FOR RENTAL INFOSpecifications
| Max Operating Pressure | 2,200 psi (15,168 kPa) |
| Max Total Pull Force Capacity | 45,000 lb (20,412 kg) |
| Pressure for Retract 45,000 lb (20,412 kg) 40,000 lb (18,144 kg) 30,000 lb (13,608 kg) 20,000 lb (9072 kg) 10,000 lb (4536 kg) | 2200 psi (15,168 kPa) 1950 psi (13,445 kPa) 1450 psi (9997 kPa) 1000 psi (6895 kPa) 500 psi (3447 kPa) |
| Max Cylinder Stroke | 16'' (406 mm) |
| Weight | 1500 lb (680 kg) |
| Width | 42'' (1067 mm) |
| Depth | 86.3'' (2192 mm) |
| Height of Threaded Adjustment Rod Collapsed (Retracted) Max Height (Extended) | 66.4'' (1687 mm) 78.8'' (2002 mm) |

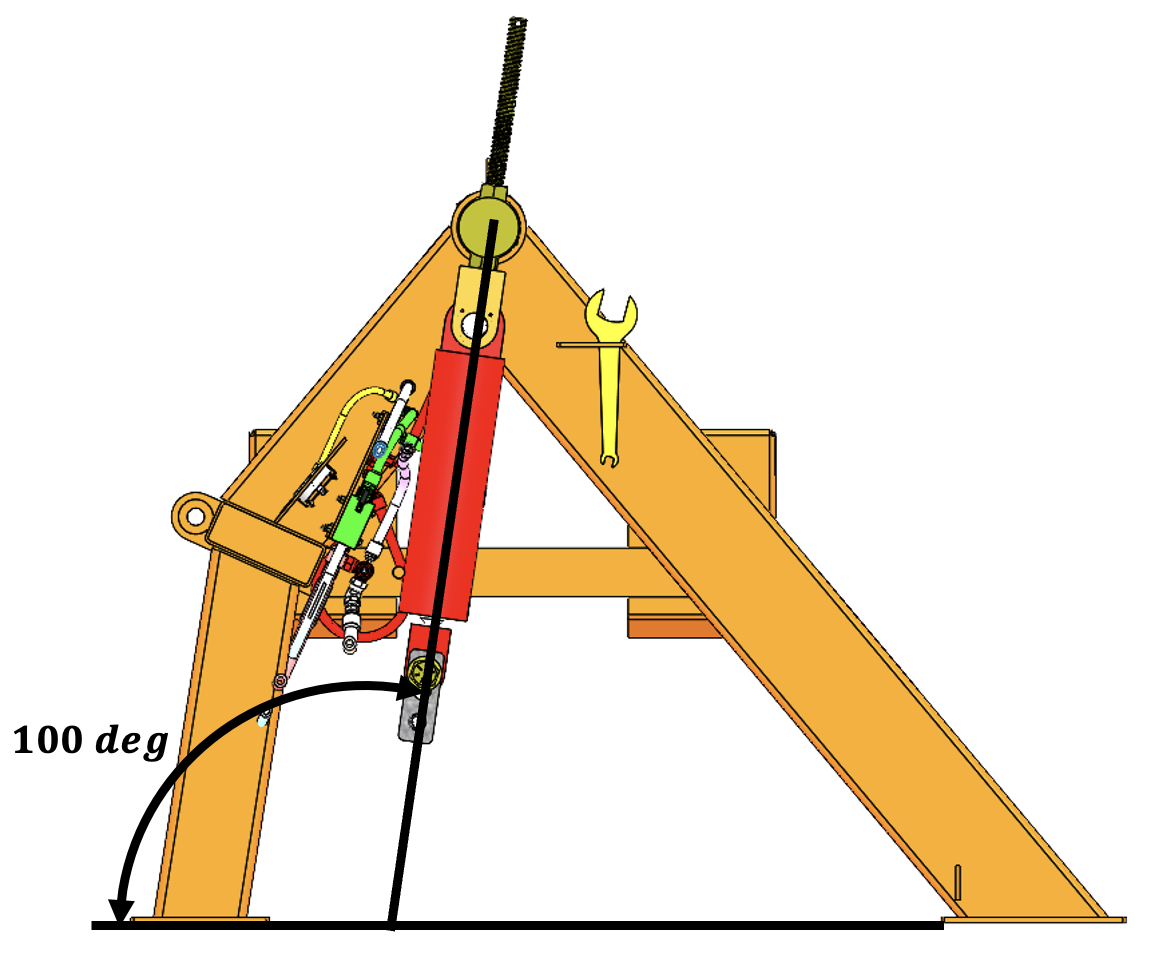

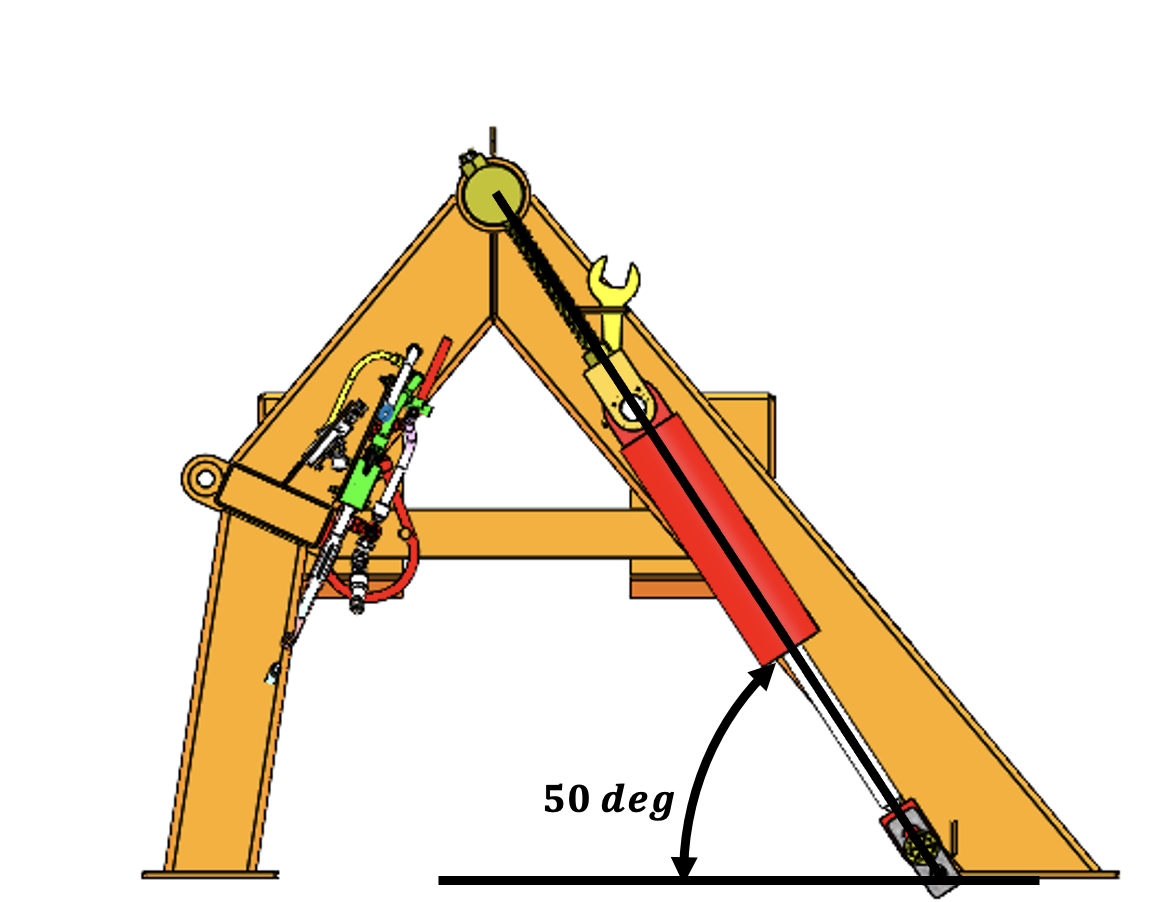

| Angle Adjustment | 50 - 100 degrees |
| Part Number | 80860 |
Features

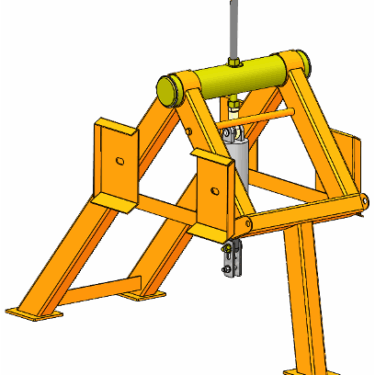

- Provides a pin with +/- 1.5” (38 mm) of side shift, a threaded rod with 12” (305 mm) of adjustment vertically, and a 16 ”(406 mm) stroke cylinder that can rotate 360 degrees about its axis with spherical bearings that allow for 5 degrees of tilt from its axis
- Allows testing of square shaft multi-helix screw anchors
- Features skid steer style quick attach, tie down points, and lift points
utility companies rely on anchor testers
- Safety: Utility infrastructure, like power lines and communication towers, needs to be secure and withstand strong winds, ice buildup, and even earthquakes. If an anchor fails, it can cause a tower or pole to collapse, potentially injuring people or damaging property. Anchor testers ensure these anchors can handle the expected stress.
- Reliability: Utility companies depend on their infrastructure to function properly. Weak anchors could lead to power outages, disrupted communication services, or even damage to the equipment itself. Anchor testing helps prevent these issues by ensuring the anchors are strong enough for the job.
- Cost-effectiveness: Replacing a failing anchor can be expensive and disruptive. Proactive testing helps identify and address any potential problems before they occur, saving the company money in the long run.
- Regulations: Many regions have regulations regarding the safety and installation of utility infrastructure. Anchor testing helps ensure that utility companies comply with these regulations and avoid fines or penalties.
