Insulator Spreader

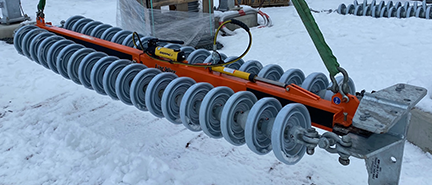

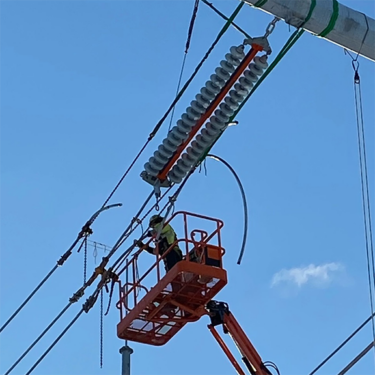

Insulator Spreader is a non-insulated tool that can be used with cranes to remove and/or install dead-end insulator bells.

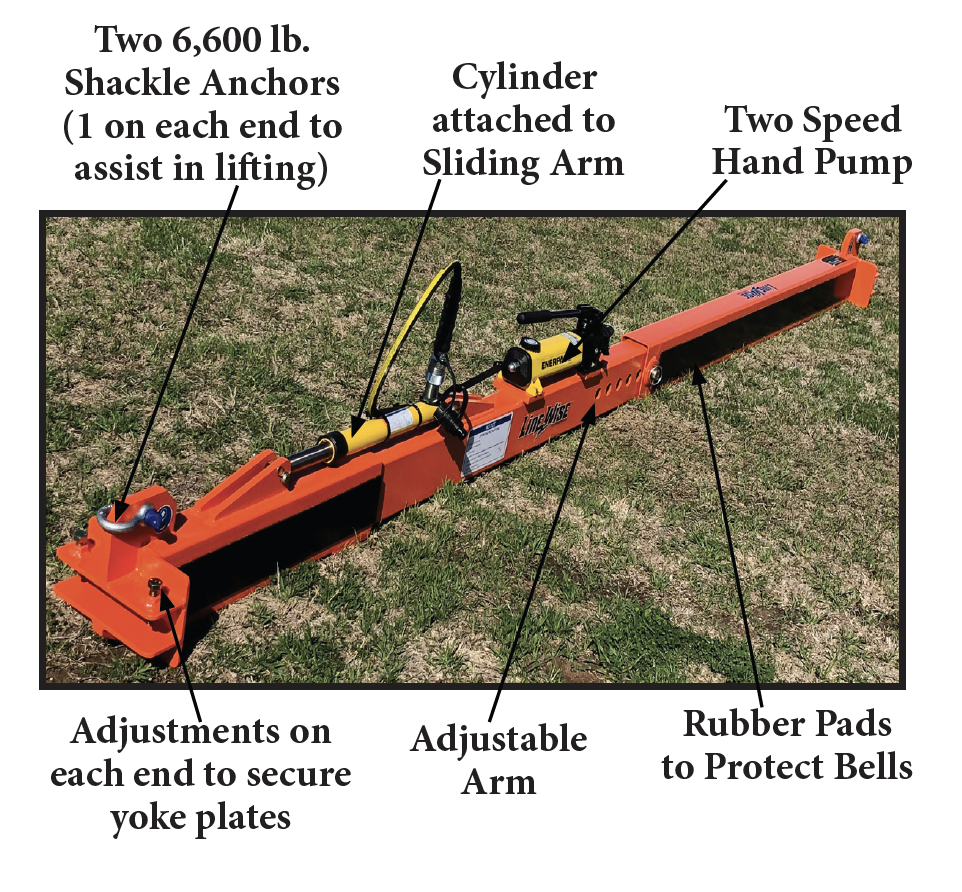

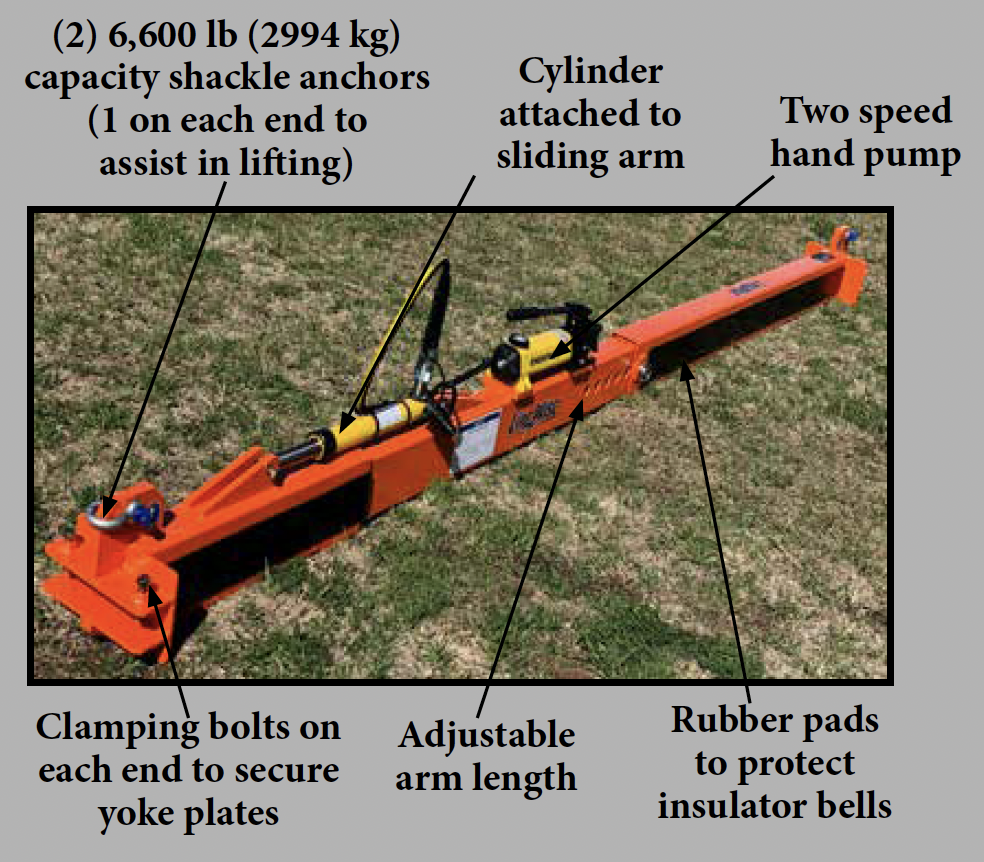

CLICK FOR RENTAL INFOFeatures

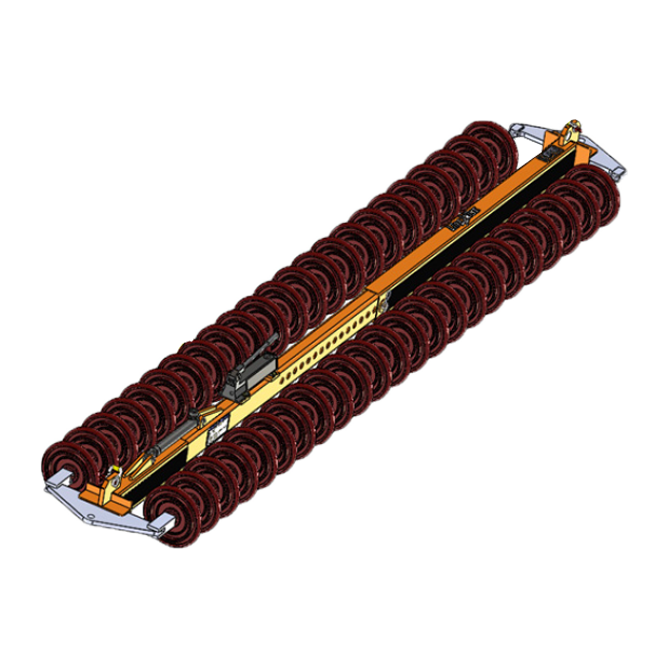

Dual-Bundle Insulator Spreaders
| MODEL | IS-2-93 | IS-2-132 | IS-2-148 |
|---|---|---|---|
| Overall Dimensions Collapsed Extended | 71’’ x 6’’ x 15’’ 1803 x 152 x 381 (mm) 98’’ x 6’’ x 15’’ 2489 x 152 x 381 (mm) | 98’’ x 6’’ x 11’’ 2489 x 152 x 280 (mm) 136’’ x 6’’ x 11’’ 3454 x 152 x 280 (mm) | 114’’ x 6’’ x 11’’ 2896 x 152 x 280 (mm) 153’’ x 6’’ x 11’’ 3886 x 152 x 280 (mm) |
| Maximum Spread | 92.5’’ (2350 mm) | 131.5’’ (3340 mm) | 147.5’’ (3747 mm) |
| Capacity | 1500 lb (680 kg) | 1500 lb (680 kg) | 1500 lb (680 kg) |
| Weight | 140 lb (64 kg) | 153 lb (69 kg) | 172 lb (78 kg) |
| Adjustable | 66’’ to 92.5’’ 1676 x 2350 (mm) | 93’’ to 131.5’’ 2362 x 3340 (mm) | 109’’ to 147.5’’ 2769 x 3747 (mm) |
| Compatible with Dual Bundle | Yes | Yes | Yes |
| Compatible with Tri Bundle | No | No | No |
| Stroke | 9.13’’ (232 mm) | 9.13’’ (232 mm) | 9.13’’ (232 mm) |
| Part Number | 72272-04 | 72272-01 | 72272 |

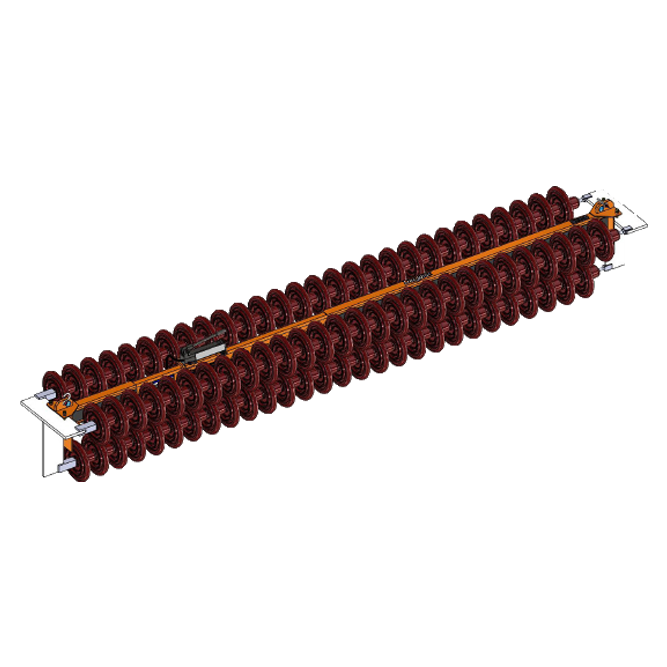

Tri-Bundle Insulator Spreaders
| MODEL | IS-3-172 | IS-3-198 | IS-3-273 | IS-3-153.5 |
|---|---|---|---|---|
| Overall Dimensions Collapsed Extended | 139’’ x 6’’ x 17’’ 3531 x 152 x 432 (mm) 178’’ x 6’’ x 17’’ 4521 x 152 x 432 (mm) | 156’’ x 6’’ x 16’’ 3962 x 152 x 406 (mm) 203’’ x 6’’ x 16’’ 5156 x 152 x 406 (mm) | 282’’ x 6’’ x 17’’ 7163 x 152 x 432 (mm) 296’’ x 6’’ x 17’’ 7518 x 152 x 432 (mm) | 120’’ x 6’’ x 17’’ 3048 x 152 x 432 (mm) 158’’ x 6’’ x 17’’ 4013 x 152 x 432 (mm) |
| Maximum Spread | 172’’ (4369 mm) | 198’’ (5029 mm) | 273’’ (6934 mm) | 153.5’’ (3899 mm) |
| Capacity | 1500 lb (680 kg) | 2000 lb (907 kg) | 5500 lb (2495 kg) | 2000 lb (907 kg) |
| Weight | 219 lb (99 kg) | 1005 lb (456 kg) | 961 lb (436 kg) | 209 lb (95 kg) |
| Adjustable | 134’’ to 172’’ 3404 x 4369 (mm) | 151’’ to 198’’ 3835 x 5029 (mm) | 257’’ to 273’’ 6528 x 6934 (mm) | 115’’ to 153.5’’ 2921 to 3899 (mm) |
| Compatible with Dual Bundle | Yes | Yes | Yes | Yes |
| Compatible with Tri Bundle | Yes | Yes | Yes | Yes |
| Stroke | 9.13’’ (232 mm) | 9.13’’ (232 mm) | 14’’ (356 mm) | 9.13’’ (232 mm) |
| Part Number | 72272-03 | 72272-06 | 72272-08 | 72272-11 |

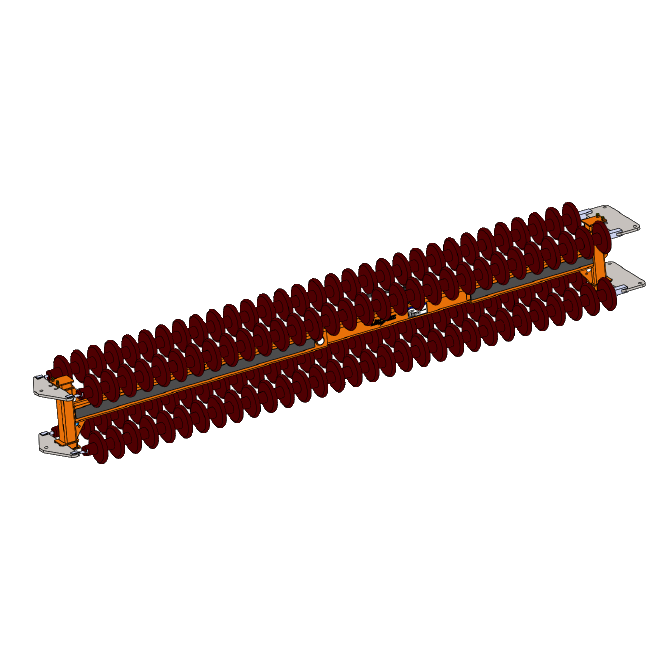

Quad-Bundle Insulator Spreaders
| MODEL | IS-4-230 | IS-4-150 | IS-4-183 |
|---|---|---|---|
| Overall Dimensions Collapsed Extended | 185’’ x 5’’ x 23.5’’ 4699 x 127 x 597 (mm) 233’’ x 5’’ x 23.5’’ 5918 x 127 x 597 (mm) | 121’’ x 5’’ x 23.5’’ 3073 x 127 x 597 (mm) 153’’ x 5’’ x 23.5’’ 3886 x 127 x 597 (mm) | 144.5’’ x 23.5’’ x 21.5’’ 3670 x 597 x 546 (mm) 188.5’’ x 23.5’’ x 21.5’’ 4788 x 597 x 546 (mm) |
| Maximum Spread | 230’’ (5842 mm) | 150’’ (3810 mm) | 183’’ (4648 mm) |
| Capacity | 2500 lb (1134 kg) | 2500 lb (1134 kg) | 2000 lb (907 kg) |
| Weight | 490 lb (222 kg) | 381 lb (173 kg) | 470 lb (213 kg) |
| Adjustable | 182’’ to 230’’ 4629 x 5842 (mm) | 118’’ to 150’’ 2997 x 3810 (mm) | 139’’ to 183’’ 3531 x 4648 (mm) |
| Compatible with Dual Bundle | No | No | No |
| Compatible with Tri Bundle | No | No | No |
| Stroke | 8’’ (203 mm) | 8’’ (203 mm) | 8’’ (203 mm) |
| Part Number | 72272-05 | 72272-07 | 72272-10 |
