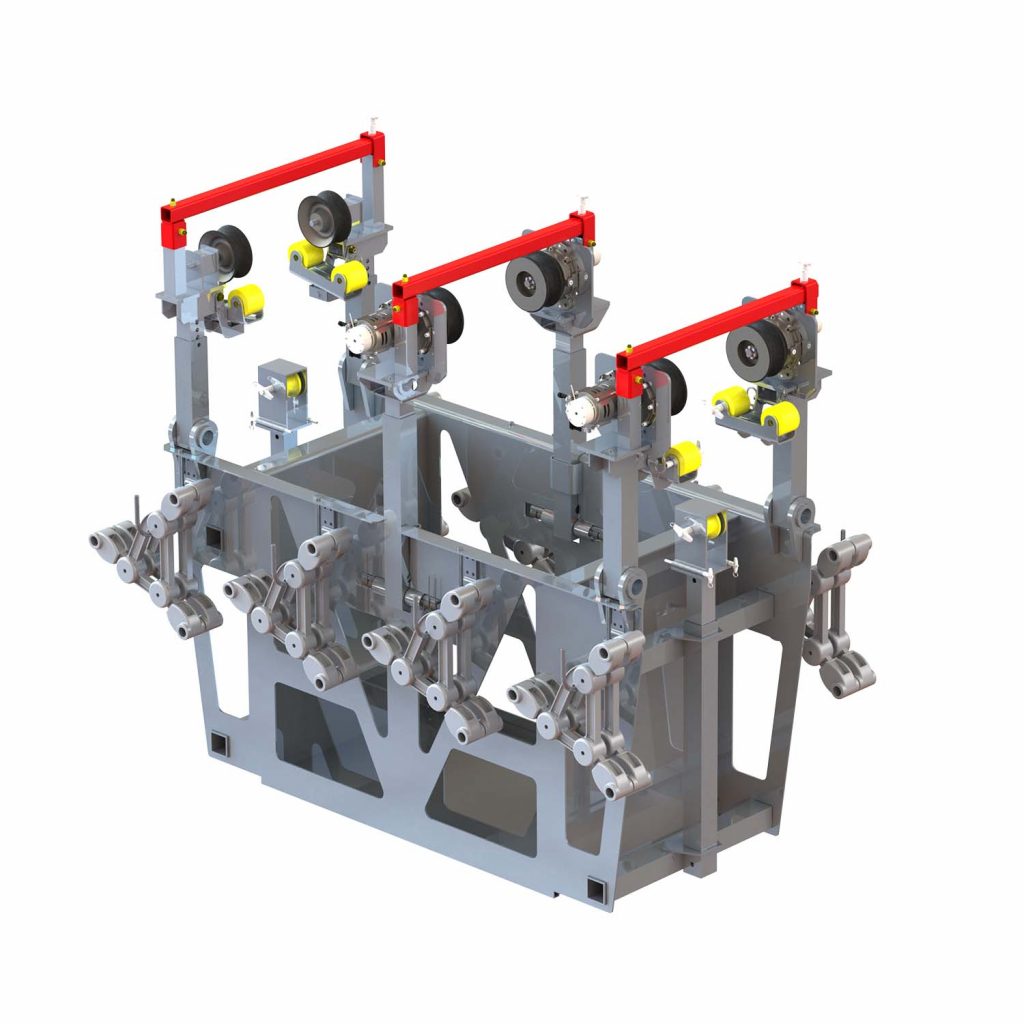

Pioneer 3E

Pioneer 3E pairs electric quiet with agile, confident handling for tri-bundle spans. The smooth drive reduces crew fatigue and improves control on long approaches, while the chassis geometry stays composed over bumps, transitions, and grades. For utilities and contractors seeking a modern, low-emission tri-bundle cart with real jobsite manners, Pioneer 3E earns its name.

LineWise Pioneer 3E Brochure DOWNLOAD

CLICK FOR RENTAL INFO

Features

20 degree climb angle; wheels specifically engineered for no slip
Configured for 3 conductors; 18” (457 mm) between conductor
30.5” (775 mm) between roller assemblies
Cradle to place Pioneer 3N Line Cart onto the conductors using crane or helicopter
Retractable hooks for spacer storage
Customized tool storage
Can be configured for bonded work
Battery or gas/hydraulic powered
Folding seat
Parking brake included
Electric linear actuators for wheel articulation
Safety tube secured across wheels in case conductor comes off
Floor openings less than .50” (13 mm)
2 or 3 bundles

Specifications

Dimensions	60'' x 91.5'' x 81'' tall 1422 mm x 2311 mm x 2057 mm tall
Operation	Electric-powered
# of Conductors	Tri-bundle
Capacity	600 lb (272 kg)
Weight	950 lb (430 kg)
Max Speed	4 mph
Conductor Diameter	1'' - 2'' (25 mm - 51 mm) max 2.5'' with armor rod (64mm)
Performance	Qty (2) 1.9kW main drive motors direct mounted to wheel Qty (2) 1.9kW secondary drive motors direct mounted to wheel All day power provided by qty (2) 48 volt 30Ah batteries
Wheels	6 upper wheels; qty (4) rubber drive wheels electrically driven and qty (2) composite idlers Each main wheel support rotates laterally for passing yoke plates, insulators & spacers Center main wheels raise/lower so each set of main rollers can be removed from conductors Vertically actuated lower roller for third conductor 7.5’’ (191 mm) outer diameter, 5.8’’ (147 mm) inside diameter rubber coated drive wheel
Braking	Dynamic provided by electric drive system
Construction	Aluminum Alloy; Welded & Bolted
Occupancy	1 Person
